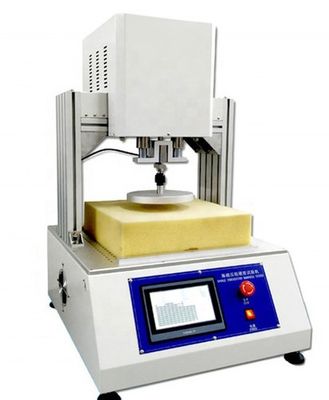

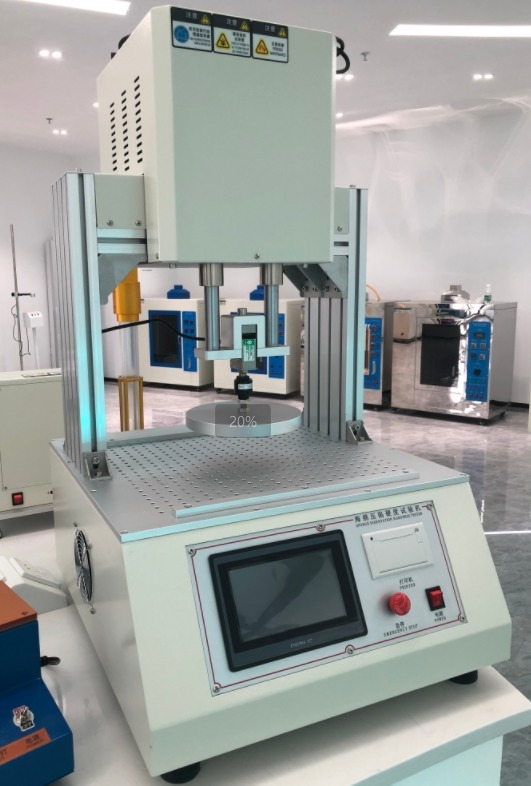

IFD Test Machine Foam Repeat Pounding Fatigue Testing machine Compression Hardness Tester

This machine is primarily used for reciprocating impact compression fatigue testing of foam polymeric materials to determine the thickness reduction value and hardness reduction value (residual deformation rate) of samples, enabling evaluation of the material's dynamic fatigue characteristics.

• ISO 3385
• ASTM D3574

• Control mode: LCD Touch screen control
• Induction mode: Precision load element
• Capacity: 200kg
• Unit switch: Kg, N, LB
• Pressure plate: Overall diameter of 250 mm±1 mm with a 25 mm±1 mm radius at its lower edge, with device for applying maximum force of 750 N ±20 N during one loading cycle
• Lower platform: 420×420mm, porosity diameter 6mm, spacing 20mm
• Maximum stroke: 200mm
• Test speed: (70 ±5) times/min (adjustable)
• Counter: 1-999,999 cycles
• Power source: Servo motor
• Transmission mode: Precision ball screw
• Power source: Single-phase, 220V, 50Hz/60Hz, 2.5A
• Weight: 90kg
• Dimension: 600×500×800mm (L×W×H)
