Name: SATRA TM 142 Shock Impact Tester 8.5kg 11.9kg Drop Weight
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-SC42
Price: 4,500.00 USD
Availability: InStock

خانه محصولات تست تجهیزات آزمایشگاهی

SATRA TM 142 Shock Impact Tester 8.5kg 11.9kg Drop Weight

جزئیات محصول:

محل منبع:	چین
نام تجاری:	SKYLINE
گواهی:	CE
شماره مدل:	SL-SC42

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	قابل مذاکره
جزئیات بسته بندی:	بازیگران چوبی
زمان تحویل:	25 روز کاری
شرایط پرداخت:	t/t
قابلیت ارائه:	1 ست / ماه

مخاطب

توضیحات محصول جزئیات

وزن:	8.5 کیلوگرم (5J) ، 11. 9kg (7J)	سرعت تست:	سرعت تست: 2+1 ثانیه/چرخه
ارتفاع قطره:	50 میلی متر	ظرفیت سلول بارگذاری:	20 کیلوگرم
منبع تغذیه:	1Ω AC 220V	سنسور جابجایی:	0 - 150 میلی متر
برجسته کردن:	SATRA TM 142 shock impact tester,lab testing equipment with drop weight,8.5kg 11.9kg shock impact tester , lab testing equipment with drop weight , 8.5kg 11.9kg shock impact tester

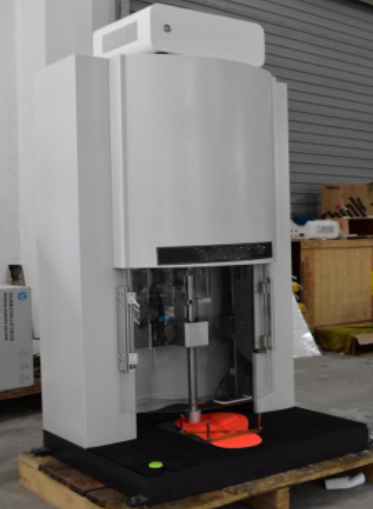

SATRA TM 142 Shock Impact Tester

Sports shoe shock absorption testing machine

Machine Introduction

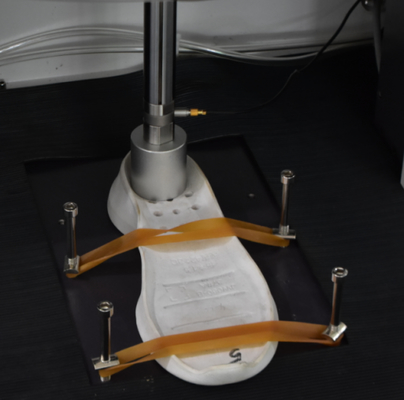

This specialized testing equipment evaluates the shock absorption characteristics and force-displacement relationship of sports shoe midsoles under rapid impact conditions. Ideal for quality control in technical supervision, footwear manufacturing, commodity inspection, arbitration, and research applications.

Key Features

High-speed signal processing system captures precise force-time measurements with graphical curve display
Advanced software performs multiple consecutive tests (26th-30th cycles analyzed statistically)
Customizable report settings with curve analysis tools (zoom, value reading)
Comprehensive data and curve printing capabilities
Reliable measurement system meeting various standard testing requirements with database management
Computer-controlled operation with intelligent software package for flexible testing protocols
Password-protected settings to ensure data integrity and prevent unauthorized operation
Standardized sample specification settings with memory function for repeated tests
Post-test analysis capabilities including unit conversion and graph modification

Measurement Parameters

The system calculates and reports multiple performance metrics including:

Peak force (FM) and maximum displacement (DM)
Energy measurements (UM, delay energy)
Time to peak force (TM)
Standardized pressure (PM) and strain (eM)
HER (delay energy ratio) and average stiffness (Sm)
Peak G measurements

Technical Specifications

Parameter	Specification
Operating System	High-speed dedicated software
Drop Weight	8.5kg (5J), 11.9kg (7J)
Impact Head	45mm diameter, R1.0±0.25mm radius, <0.2kg weight
Drop Height	50mm standard (adjustable per specimen)
Impact Energy	5J or 7J
Test Speed	2+1 seconds/cycle
Load Cell	20KN capacity, >1000Hz sampling
Displacement Sensor	0-150mm range, >1000Hz sampling (optical encoder)
Drive System	750W imported servo
Power Supply	AC 220V
