PLC BIFMA X5.1 Chair Arm and Leg Tester Static Test Machine Fatigue Test Machine

PLC BIFMA X5.1 Chair Arm and Leg Tester Static Test Machine Fatigue Test Machine

نام تجاری: SKYLINE
شماره مدل: SL-T01-B
موق: 1
قیمت: negoitable
شرایط پرداخت: T/T
توانایی عرضه: 1 واحد در ماه
اطلاعات دقیق
محل منبع:
چین
گواهی:
CE
سیلندر نیروی:
دست 200 کیلوگرم*2تایی؛ پا 100 کیلوگرم*2تایی
سرعت تست:
10-30 بار در دقیقه
حالت نمایش:
کنترل PLC، صفحه لمسی
کنترل فشار:
کنترل شیر تناسبی سروو
ارتفاع بازوی صندلی تست:
500-780 میلی متر
چرخه تست:
1-999999 بار
منبع تغذیه:
AC/220V,5A,50HZ؛90W
تامین هوا:
≥0.6kgf/cm²
اندازه ماشین:
2150mm*1300mm*2000mm (تقریبا)
اندازه منطقه تست:
1300mm*1250mm*1500mm (تقریبا)
جزئیات بسته بندی:
مورد تخته سه لا
قابلیت ارائه:
1 واحد در ماه
برجسته کردن:

PLC BIFMA X5.1 chair tester

,

static test machine for furniture

,

fatigue test machine with warranty

توضیح محصول

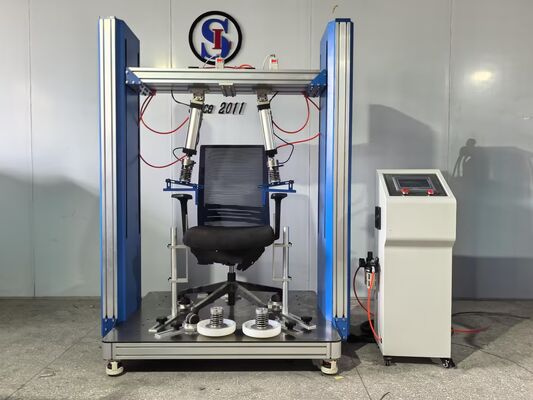

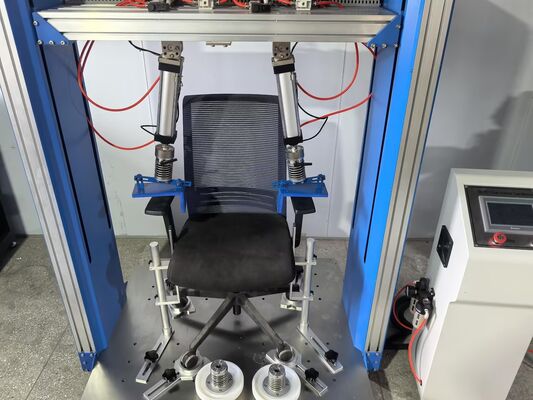

PLC BIFMA X5.1 Chair Arm and Leg Tester
Static Test Machine and Fatigue Test Machine for comprehensive chair armrest and leg strength evaluation.
Application
This Chair Armrest Testing Machine evaluates the pull-resistance capability of armrests in parallel directions, determining fatigue life under parallel strength. Features include caster fixation, automated timing, and programmable pulling strength with automatic repositioning.
Technical Parameters
Machine Structure
  • Base Size: 1.5m (W) × 2m (L) × 2m (H)
  • Vertical Posts: 2 units, 1.5m height
  • Cross Bar: 1 unit, powered height adjustment
Force Application Systems
Horizontal Force (Strength Test)
  • Pneumatic pulley system for push/pull operations
  • Height adjustment: 500-1500mm
  • Minimum horizontal distance: 30mm (adjustable)
  • Timer: 1 minute pull / 1 minute push cycle
Vertical Force (Strength Test)
  • Uses same pulley system positioned under armrest
  • Minimum vertical distance: 30mm (adjustable)
  • Timer: 1 minute vertical downward force
Horizontal Outward Force (Durability Test)
  • Cable/strap pulley system for 50,000 cycles
  • Height adjustment: 500-780mm
  • 6-digit counter control
  • Speed: 10-30 cycles/minute
Vertical Downward Force (Durability Test)
  • Cable/strap pulley system for 10,000 cycles
  • Flexible positioning on platform
  • 6-digit counter
  • Speed: 10-30 cycles/minute
Pneumatic System
  • Cylinder Type: Double-acting cylinder
  • Maximum Force: 2000 Newton
  • Air Supply: 6 bar minimum
Control Panel Features
  • ON/OFF controls
  • LCD display for load meter, speed, cycle, and time
  • Load sensing to prevent overload
  • Force selector for predetermined test forces
  • Air regulator with pressure indicator
Safety Features
  • Emergency stop function with pneumatic cylinder retraction
  • Automatic shutdown upon test sample failure
  • Mechanical damage protection
  • Power interruption safety stop
  • Automatic cycle completion shutdown
Specifications
Parameter Specification
Armrest Height 500-780mm or specified
Timer LCD, 0.01sec-99.9sec, 1sec-99 minute 99 second
Machine Size 1200×500×1000mm
Parallel Force 100-200lb
Force Stroke 0-24 inch or specified
Counter LCD, 0-999,999 times
Weight 250kg
Power 1Φ, AC220V, 3A
Compliance Standards
  • ANSI/BIFMA X5.1-2011 11.4 Front Corner Load-Ease Test-Cyclic-Off-center
  • ANSI/BIFMA X5.1-2011 18 Leg Strength Test - Front and Side Application
  • ANSI/BIFMA X5.1-2011 20 Footrest Durability Test-Vertical-Cyclic
  • ANSI/BIFMA X5.1-2011 21 Arm Durability Test - Cyclic
