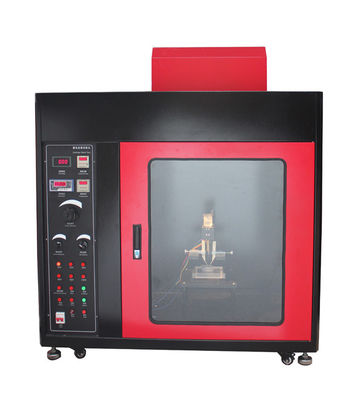

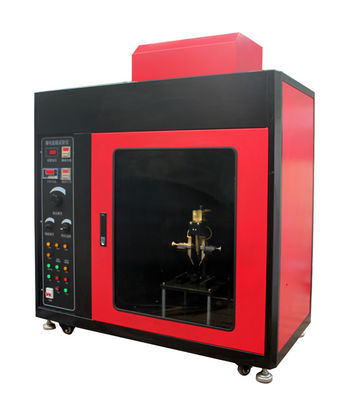

دستگاه تست اشتعال پذیری ، تستگر شاخص پیگیری

مواد: فولاد

استانداردها: ISO340

چراغ بنزن: قطر داخل 10.5mm است

زاویه چرخش مشعل Bunsen: 0 تا 45 درجه قابل تنظیم

قاب تست فولاد ضد زنگ کوچک: 450X300X150mm

ابعاد داخلی قاب پشتی: 450±2×450±2mm

ابعاد داخلی قاب صندلی: 450±2×300±2mm

دستگاه بزرگ تست فولاد ضد زنگ: 450X450X300 میلی متر

Tested Wires Length: 600mm(24 In)

Thermocouple Type: K (Ni/Cr - Ni/Al)

Flame Burn Time: 15 seconds

Standards Met: UL94, ISO 6722, IEC 60695-11-3, IEC 60695-11-4, UL94HB, V-0,1,2, 94-5VA,B, 94VTM-0,1,2, 94HBF,94HF-1,2

Burner Tube Internal Diameter: Φ 9.5mm±0.3mm

Construction Material: Stainless Steel

Tested Wires Length: 600mm(24 In)

Volume Of Chamber: >0.5m³

Suitable For: Conductor diameter greater than 8mm (section area is greater than 0.5mm2) or less than 8mm (section area less than 0.5mm2) of single wire and cable flammability evaluation. Suitable for lighting equipment, low-voltage electrical appliances, household appli

Volume Of Chamber: >0.5m³

Product Category: Flammability Testing Equipment

Thermocouple Type: K (Ni/Cr - Ni/Al)

Product Category: Flammability Testing Equipment

Tested Wires Length: 600mm(24 In)

Gas Flow Controls: Precision

Interior Color: Black

Construction Material: Stainless Steel

Suitable For: Conductor diameter greater than 8mm (section area is greater than 0.5mm2) or less than 8mm (section area less than 0.5mm2) of single wire and cable flammability evaluation. Suitable for lighting equipment, low-voltage electrical appliances, household appli

Standards Met: UL94, ISO 6722, IEC 60695-11-3, IEC 60695-11-4, UL94HB, V-0,1,2, 94-5VA,B, 94VTM-0,1,2, 94HBF,94HF-1,2

Thermocouple Type: K (Ni/Cr - Ni/Al)
